PCT high-pressure accelerated aging box
The PCT high-pressure accelerated aging chamber, also known as the saturated steam high-pressure life test chamber, is called High Pressure Cooking Testing Chamber in English. It is used to evaluate the ability of electronic components, PCBs, chips, etc. to resist the environment under high temperature, high humidity, and high pressure conditions. By accelerating the failure process, it shortens the life test time of products or systems and helps to discover product failure modes in advance.
Category:
PCT accelerated aging test chamber
Keyword:
Kexun
Mobile:18688631772 18925806499
Product Introduction
Product Specifications: Available in standard capacities from 31L to 248L, with non-standard customization options available.
Product Introduction: The PCT high-pressure accelerated aging chamber, also known as a saturated steam high-pressure life test chamber (High Pressure Cooking Testing Chamber in English), is used to evaluate the environmental resistance of electronic components, PCBs, chips, and other products under high-temperature, high-humidity, and high-pressure conditions. It accelerates the failure process, shortening the life test time of products or systems and allowing for early detection of failure modes.
Other Names: PCT high-temperature and high-pressure steaming instrument, saturated steady-state humid heat aging chamber, PCT saturated humidity accelerated life aging chamber...
Kexun PCT high-pressure accelerated aging chamber: Used for accelerated life and reliability testing of IC packaging, semiconductors, microelectronic chips, magnetic materials, and other electronic components under high-pressure, high-temperature, and saturated humid heat conditions.
I. Applicable Test Standards:
GB/T10586-1989 Technical Conditions for Humid Heat Test Chambers.
GB2423.3-93 (IEC68-2-3) Constant Humid Heat Test.
MIL-STD810D Method 502.2.
GJB150.9-8 Temperature and Humidity Test.
GB2423.34-86, MIL-STD883C Method 1004.2 Temperature, Humidity, and High-Pressure Combined Cycle Test.
JESD22-A102 High-Pressure Steam Test (Accelerated Moisture Penetration Resistance)
II. Application Fields:
PCBs, semiconductors, display panels, solar energy, magnetic materials, polymer materials, etc.
|
PCT (Saturated Humidity) High-Pressure Accelerated Aging Chamber |
|||||
|
Model |
KS-PCT-30L |
KS-PCT-69L |
KS-PCT-154L |
KS-PCT-248L |
|
|
Capacity (L) |
31 L |
69 L |
154 L |
248 L |
|
|
Internal Chamber Dimensions |
Diameter φ |
350 |
400 |
550 |
650 |
|
Depth D |
450 |
550 |
650 |
750 |
|
|
External Dimensions |
Width W |
700 |
700 |
850 |
950 |
|
Depth D |
1000 |
1100 |
1150 |
1250 |
|
|
Height H |
1710 |
1710 |
1760 |
1860 |
|
|
Performance Indicators |
Temperature Range |
+100~+145℃ (Saturated Steam Temperature) |
|||
|
Humidity Range |
100%RH (Saturated Steam Humidity) |
||||
|
Pressure Range |
0.2~3kg/cm² (0.05~0.294Mpa) |
||||
|
Temperature Uniformity |
≤±2℃ |
||||
|
Temperature Fluctuation |
≤±0.5℃ |
||||
|
Humidity Fluctuation |
≤±2 % R.H |
||||
|
Humidity Deviation |
≤±3 % R.H |
||||
|
Temperature Deviation |
≤±2℃ |
||||
|
Pressure Deviation |
≤±2Kpa |
||||
|
Pressurization Time |
Approximately 45min |
||||
|
Power |
2.2KW |
2.5KW | 3.5KW | 4.5KW | |
|
Chamber Material |
Inner Chamber |
SUS #316 Stainless Steel |
|||
|
Outer Chamber |
Cold-rolled steel plate with double-sided electrostatic spraying |
||||
|
Insulation |
Ultra-fine glass wool |
||||
|
Noise |
≤60 (dB) |
||||
|
Controller |
7-inch color touch screen controller (with pressure, temperature, and humidity display; RS-485 or RS-232 communication; USB data backup) |
||||
|
Resolution |
Temperature: 0.01℃; Humidity: 0.1%RH; Pressure: 0.1 kg/cm²; |
||||
|
BIAS Bias Terminals |
Customized according to user needs |
||||
|
Operating Conditions |
Ambient temperature: +5℃~+35℃; Ambient humidity: ≤85%RH; Ambient atmospheric pressure: 86KPa～106KPa |
||||
|
Power Supply |
AC220V 50/60Hz |
||||
|
Protective Devices |
1. Overtemperature protection, 2. Fan overload protection, 3. Chamber door pressure protection, 4. Water shortage protection, 5. Overflow protection, 6. Heater dry-burn protection, |
||||
|

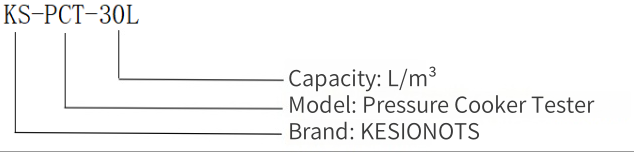

Model Description |
|
||||
Research, design and production of environmental testing machines
